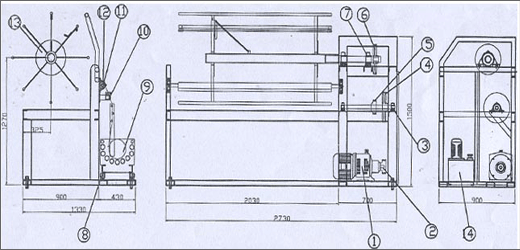

NO |
Ç°¸í |
±Ô°Ý |
1 |
V.S MOTOR |
2HP |
2 |
PULLEY |
B*3*2 |
3 |
BEARING |
UCP 205 |
4 |
PULLEY |
B*12*2 |
5 |
PULLEY |
B*3*2 |
6 |
PULLEY |
B*12*2 |
7 |
BEARING |
UCP 212 |
8 |
BEARING |
#6205 |
9 |
PIPE |
48.6 PIPE |
10 |
E.P.C SENSOR |
|
11 |
BEARING |
UCP 205 |
12 |
ROLLER |
60*1800 |
13 |
OIL BOX |
1/2HP |
|
ROLLER WIDTH |
1800mm |
WOPKING SPEED |
0-80m/min |
MAIN MOTOR |
V.S MOTOR 2HP (1.5Kw) |
|
