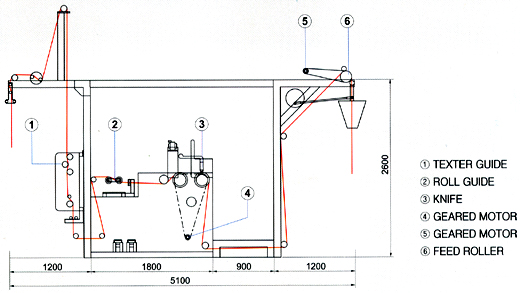

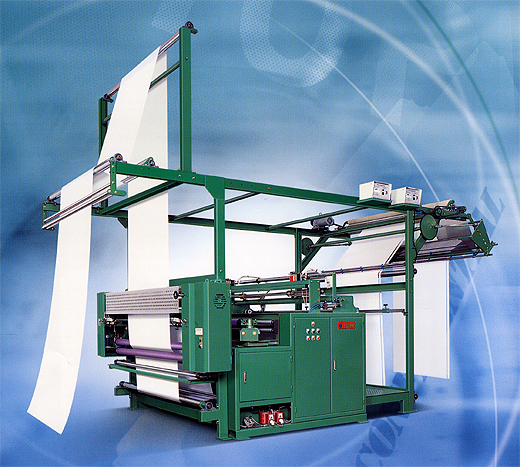

SLITTING OPENING MACHINE

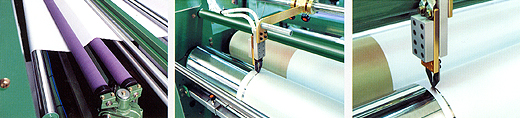

This machine is equipped with several heater-style knifes, air-style knifes and fixed knifes. So it cuts polyester, nylon, nonwoven and coated fabrics for digital print, advertisement and banner, and then winds them.





Total electric capacity
10kw
Machine installation size
L5100¡¿W2400¡¿H2600mm
Machine weight
1300kg
Working speed
0-50m/min
Roller width
2000mm
