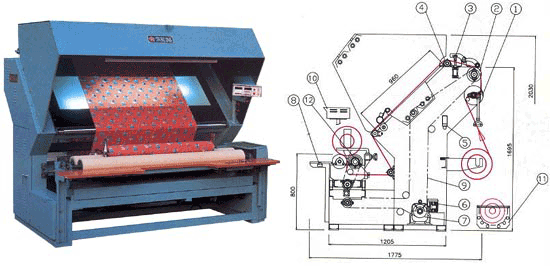

Inspecting & Winding Machine S7-1 is a new type for insp ecting of silk and fashion company, tent manufactures, sewing factory as well as existing dyeing company, and it`s mntufactured very easy and conveniently to inspect the sheet one by one owing to a low height, a beam switch, a malco bracket and a greyed box device. Especially, as the beam switch is equipped, it is automatically stopped before a sheet drops on the inspecting plate. Thus it`s convenient to work a continuos wide and it`s highly spoken of in the every fields because of a higher productivty.



MAIN MOTOR
AC3-PHASE 1.5kw (INVERTER DRIVE)
WORKING WIDTH
1800mm
WORKING SPEED
0-110m/min
WORKING DIAMETER
¨ª400
MAIN MOTOR
1HP GEARED MOTOR
