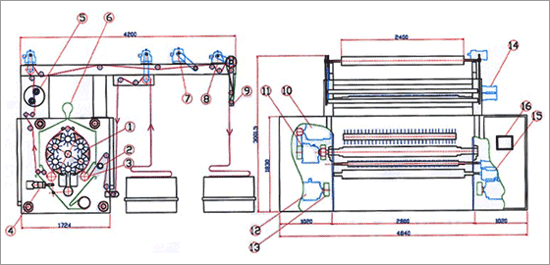

DESCRIPTION

1.Main brush roller

7.Motor(0.75W,1/120)

13.Timming pulley

2.Brush device roller

8.Strap drive motor(1/25)

14.Brush drive Motor(0.4LW.1/5

3.Strap device roller

9.Folder with rolling unit

15.Strap roller drive motor(1/30)

4.Tension cylinder

10.Main shaft drive motor

16.Touch-screen display

5. Brush device roller

11.Cycloid reducer(1/43)



6.Duct

12.Main brush drive motor







1.Designed for fabric to obtain peachskin and treatment even through between the strands of fabric.
2.The widest possible range of knitted, Tricot, cotton, synthetic fabric, and cotton/nylon,nylon/cotton.
3.Reduce working time and labor cost because it`s needless replace due to outworn sand papers and guarantees the standardization of products and the highest measure of Quality,production and economy.
4.Good durability of effect after washing and no a hole and fine nap of fabric.
5.Produce an excellent peachskin effect that the impossible through buffing machine.
6.Standardization of products with touch screen of computer programming.
7.Perfect system for dust removal.
8.Automatic tension control with the digital control unit, and take off stripestain, clothesline stain due to hunting down.



Main Motor
AC3-PHASE 22.5kw (INVERTER DRIVE)
Total electric capcacity
70Kw
Machine installation size
(L)4200* (W)4840
Weight
4500Kg
Working speed
0-50 M/MIN
Roller width
2400mm
