SCUTCHER (SB-S500)





AUTO CUTTING, BENDING&INSPECTION WINDING MACHINE
(SB-S100)





AUTO CUTTING & INSPECTION WINDING M/C (SB-S50)




INSPECTING & ROLLING MACHINE (SB-R1)




INSPECTION WINDING MACHINE (SB-S10)




NSPECTING & WINDING MACHINE (SB-S7)




INSPECTING & WINDING MACHINE (SB-S7-1)




INSPECTING & WINDING MACHINE (SB-S7-2)




INSPECTING & WINDING MACHINE (SB-S5)





FOR KNIT TENSIONLESS INSPECTION WINDING MACHINE (SB-TI-1000)





FOR KNIT TENSIONLESS INSPECTION WINDING MACHINE (SB-TI-2000)




FINISHED CLOTH INSPECTING MACHINE (SB-S1)




FOR TUBULAR KNITTED FABRICS (SB-K1-10)




AUTOMATIC SELVAGE PRINTING MACHINE (SB-P1)




MANUAL SELVAGE MARK PRINTING MACHINE (SB-P2)




AUTOMATIC FOLDING MACHINE (SB-F5)




DOUBLING & LAPPING MACHING (SB-D1 )




UNROLLING MACHINE (SB-S8)




BATCHING MACHINE (SB-B1)




AUTOMATIC CLOTH JOINING MACHANE (SB-D5000)




CLOTH JOINING MACHANE
(SB-J4000)




INSPECTING WINDING MACHINE (SB-S2)




INSPECTING & WINDING MACHINE (SB-S5000)




INSPECTION WINDING MACHINE (SB-S10-1)

BIAS CUTTING MACHINE (SB-BC45)

SLITTING OPENING MACHINE

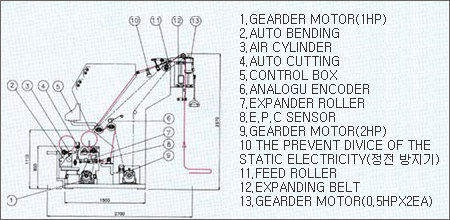

2. BENDING

5. MAIN SWITCH BOX

12. EXPANDING BELT









Auto cutting, bending & inspection winding machine SB-S100 is a innovational type of ultramodern industry manufactured on the basis of technique and theory which Sung Bok machinery company has been studied for the several years. In the feeding part, the specialized expanding belt is equipped so it makes the bad preparation and folking by wind remain in spread sheet. work the cutting bending depended on the manual job, that can maximize the dffectiveness.



WORKING WIDTH
1800mm
WORKING SPEED
0-110m/min
WINDING DIAMETER
300mm
MAIN MOTOR
2HP GEARED MOTOR
