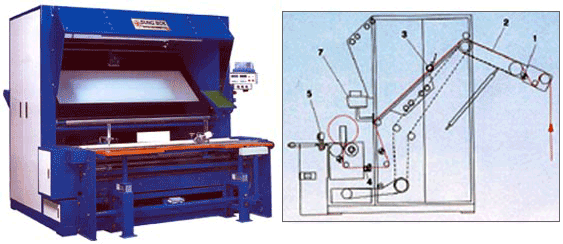

Latest-model inspection winding machine developed for rolling,
length & weight measurement and inspection of texture such as knit and span
of strong elasticity.
|
|
|
|
|
*Refined design differently from the existing one
*Tension can
be regulated freely according to fabric property by controlling the overfeed
quantity with V.S Pulley attached to Draw roller and main rolling roller.
*Stable fabric automtic-cutting device attached.
*A utomatic weight
measurement device of rolling fabric attached.
*Angle of supply endless belt
is controled according to weight of fabric. |
|
|
|
|
|
MAIN MOTOR (INVERTER) |
AC 3PHASE 1.5Kw(INVERTER DRIVE) |
|
ROLLER WIDTH |
1800mm |
|
WORKING SPEED |
0-110m/min |
|
MACHINE SIZE |
(L)2900*(W)2500*(H)2250 |
|
WEGHIT |
1000Kg |
|

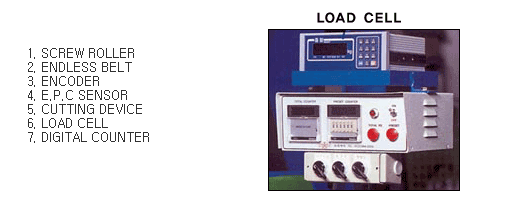

LOAD CELL |
0Kg~150Kg |
|
