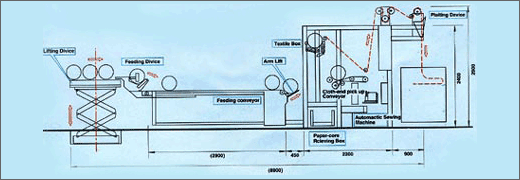

Rolltype cloth joining machine join automatically a cloth a cloth out of traditional hand-worked. This machine have been manufactured for purpose of high productivity and manpower retrenchment.



Greater Productivity:
A great reduction in peration time and a 70~100% increase in productivity.
Greater Automation:
SUNG BOK requires less spcially trained operators.
Aliged Sewing:
Because fo special sensor opation, straight and accurate sewing lines, without curves or slants, are uaranteed.

Easy Operation:
The SOUNG BOK is easy to operate and requires no special operrating skill.



Machine size
8900w*3400L*2900H(m/m)
Roller width
2200mm
Working speed
0~150m/min
Roll daimeter
Min Ø80 ~ Max Ø350
Machine weigh
1500kg
