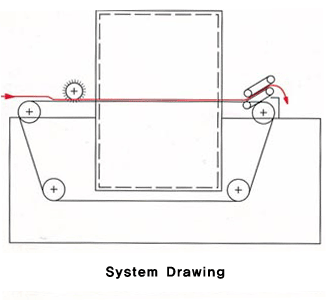

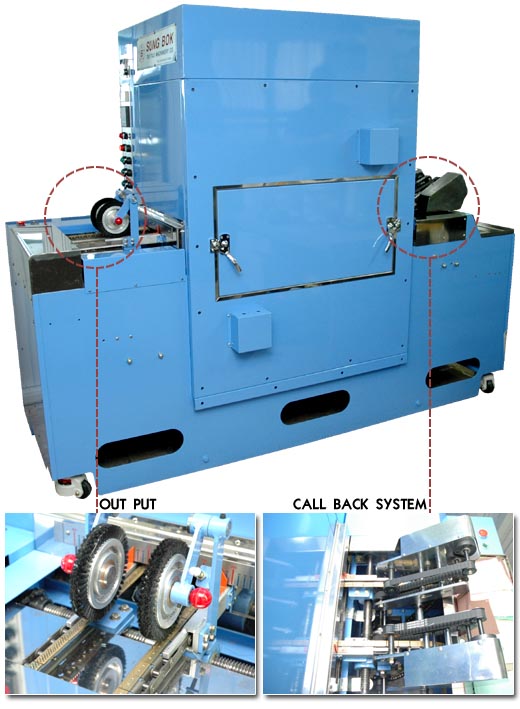

This test machine developed for heat-treatment of dyed fabric is suitable for B/T test of cotton, blended fabric and nylon.



This machine, having excellent temperature control system, can promote a field-reproduction property with heat treatment under the same condition as the one when setting at Tenter to prevent a trouble in color difference of running quality due to unbalance in sample heat-tretment lemperature of B/T test quality & running quality.



Main motor
AC3PHASE 0.4kw (INVERTER DRIVE)
Totai electric capcacity
AC 18kw
Machine installation size
215cm*90cm*170cm
Weight
650kg
Heater
SUS U자, HEATER SWITCH (2단)
Applicable test colth width
100-350mm
Maximum temperature
230˚C
Temperature control
±1%
Fan controller

Inverter Control System
