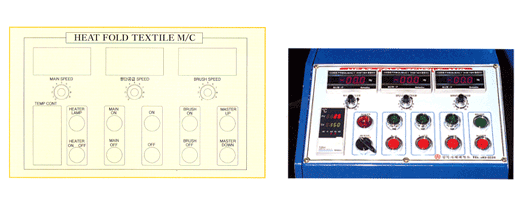

*Main motor, fabric-supply motor and pinching knife motor are all the speed control&master
control modes respectively.
*Users can produce same desing at high speed after obtaining a design they want at low speed.

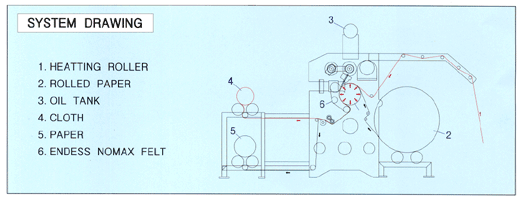

*Various desing can beobtained with the processing part divided in 3stages(Pinching knife,
Heating roller,Endless nomax felt) controled respectively.
*Various design can be obtained with replacement of pinching knife.




TOTAL ELECTRIC CAPACITY
15kw
HEATER
SUS HEATER TWO TOUCH CONTROL
WORKING SPEED
2m/min
MACHINE SIXE
(W)2980 * (H)1200 * (L)2100
WEGHIT
About 900KG
TEMPERATURE CONTROL
¡¾2%
SPEED CONTROL
UP/DOWN,(SPEED CONTROL)
